Model:

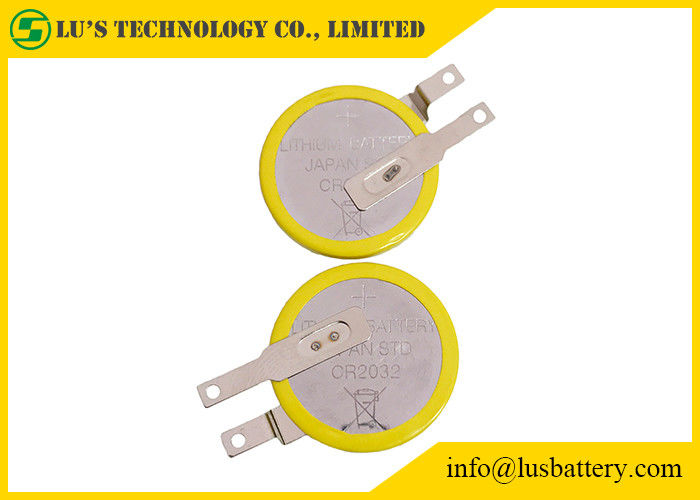

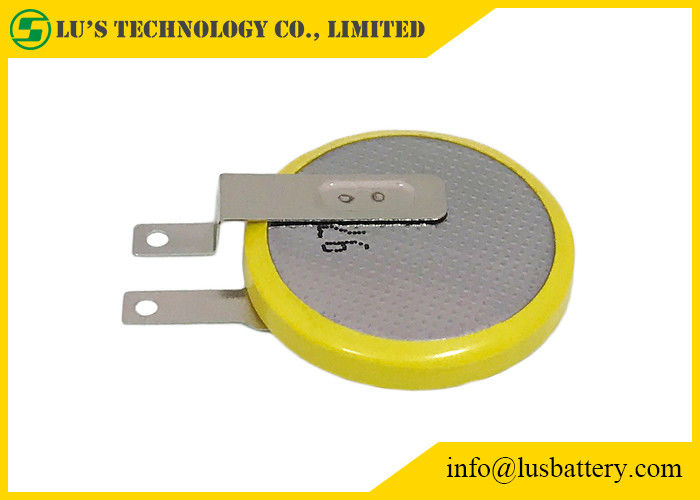

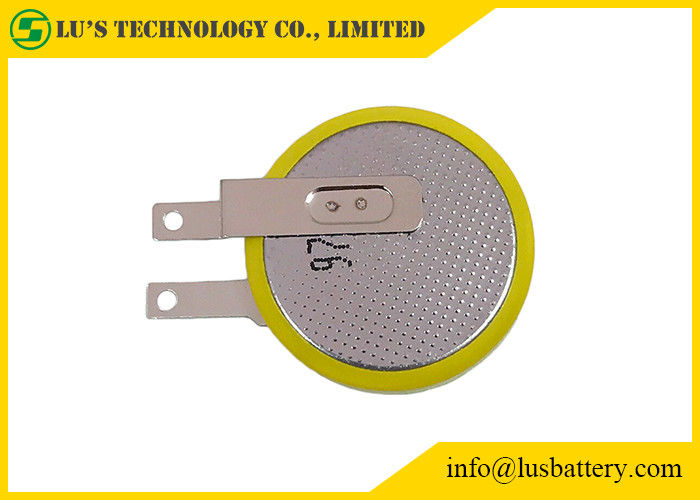

Lithium Manganese Dioxide Battery CR2032 Lithium Button Cell
CR2032 Specification
| Item |
Unit |
Secification |
Conditions |
| Voltage |
V |
3.0 |
Standard discharge |
| Capacity |
Mah |
220/240 |
Standard discharge |
| Instandtaneous Short-circuit current |
mA |
≥250 |
Time≤0.5 second |
| Off-load voltage |
V |
≥3.25 |
|
| Storage temperature |
℃ |
-10~50 |
|
| Standard weight |
g |
3.0 |
Unit cell |
Self-discharge rate
|
|
≤5% |
Stored for 12 months at normal temperature, then continuously discharged with 15 load till 2.0v end-voltage |
| ITEM |
CONDITIONS |
CHARACTERISTICS |
| Self-discharge rate |
Stored for 12 months at normal temperature, then continuously discharged with 15kΩ load till 2.0v end-voltage |
≤5% |
Figure and dimension(unit:mm)
Suggestions And Cautions
1 Install batteries correctly.
2 Ensure the contact points to be clean and conductive.
3 Do not mix different types, different brands batteries to serve together.
4 Do not heat, recharge the batteries.
5 Do not dispose of the batteries in fire.
6 Keep away from the small children, if swallowed promptly see doctor.
7 Pay attention to the producing date.
Coin Cell Battery Application:
Widely used in watches,computers, laptops, music card;
Voice table,hearing aids, electroni cnotepads, dict;
Cameras, medical devices, flashing lights;
Shoes, lamps and other electronic products.
Such as:
Vacuum cleaner, shaver, MP3, MP4, Digital camera, portable computer,
Lighting, electrical toys, electronic game Machine and electrical vehicles,
Cordless Phones, interphones, and all kinds of Cell phones.
Advantage for Button Cell Battery Lithium Limno2:
High capacity and long cycle life
Long service lifespan
Excellent life cycle
Enviromental friendly
High energy density
Excellent overcharge performance
Rapid charge performance
Lower inner resistance and low self-discharge
Safety and reliability
Wide temperature range, specially design battery can used in high and low temperature
Good quality with competitive price and best service
CR2032 Lithium Battery 3.0v coin cell Product:
3.0v Button cell:
| Mode |
Voltage(V) |
Capacity(mAh) |
Dimension(mm) |
Weight(g) |
Chargeable or Non |
| CR2032 |
3 |
220 |
20.0*3.2 |
3 |
Non |
| CR2032 |
3 |
240 |
20.0*3.2 |
3 |
Non |
| CR1220 |
3 |
35 |
12.5*2.0 |
0.8 |
Non |
| CR1225 |
3 |
50 |
12.5*2.5 |
0.9 |
Non |
| CR1616 |
3 |
50 |
16.0*1.6 |
1.1 |
Non |
| CR1620 |
3 |
70 |
16.0*2.0 |
1.3 |
Non |
| CR1632 |
3 |
120 |
16.0*3.2 |
1.8 |
Non |
| CR2016 |
3 |
83 |
20.0*1.6 |
1.7 |
Non |
| CR2025 |
3 |
150 |
20.0*2.5 |
2.5 |
Non |
| CR2450 |
3 |
600 |
24.5*5.0 |
6.2 |
Non |
| CR3032 |
3 |
550 |
30.0*3.2 |
7 |
Non |
| ML1220 |
3 |
17 |
12.5*2.0 |
0.8 |
Yes |

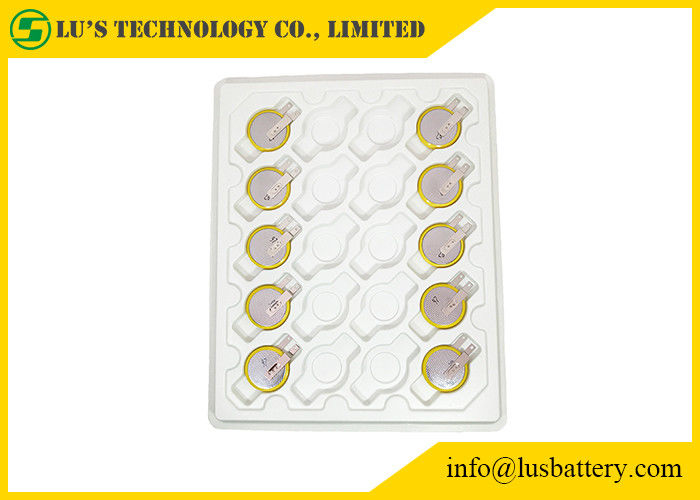

Structure Figure Of Package
